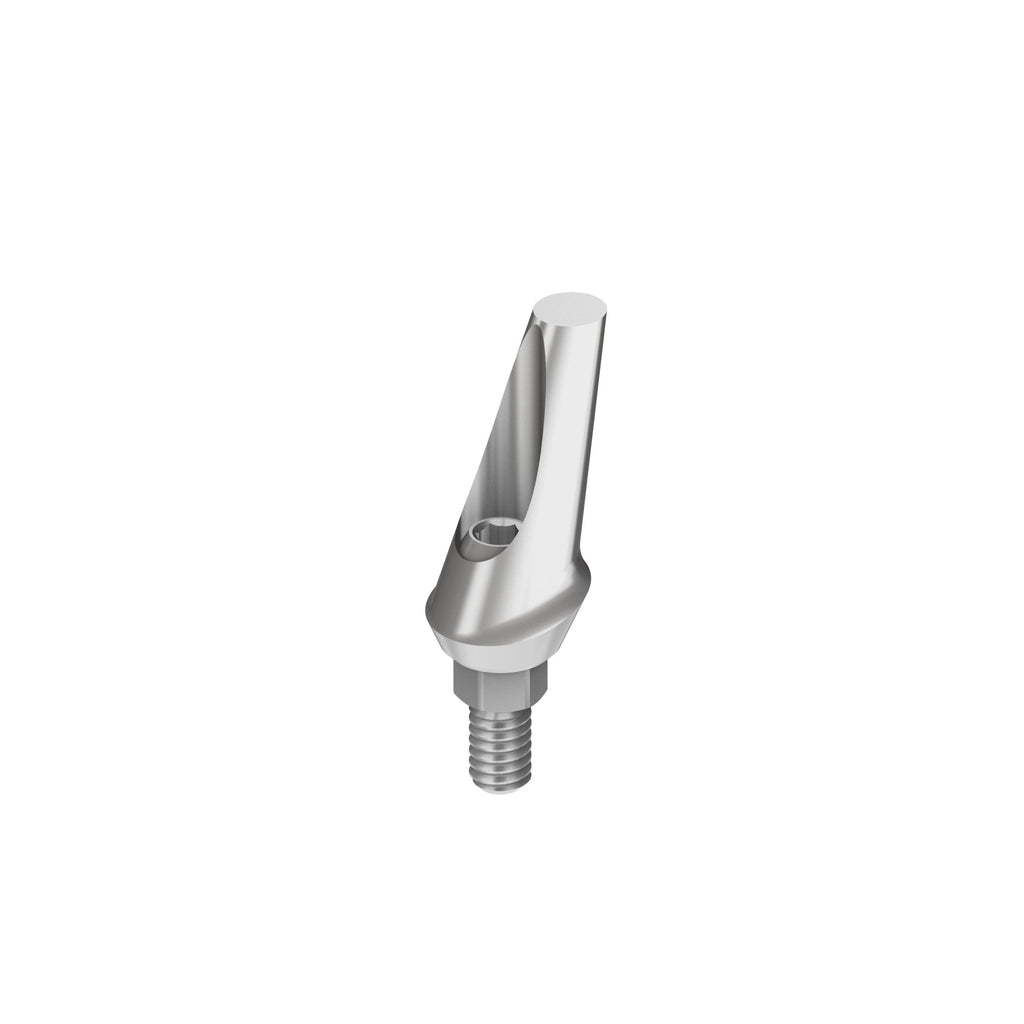

15° angled titanium abutment for ADIN implant systems, designed to compensate for implant angulation and achieve optimal prosthetic axis alignment for cement-retained or screw-retained restorations.

Specifications:

• Angulation: 15°
• Available Lengths: 10.5 mm / 13.1 mm
• Material: Grade 5 Titanium (Ti-6Al-4V)

Compatible With:

• ADIN Touareg™ S
• ADIN Touareg™ OS
• ADIN Swell™

Indications:

Indicated for implants placed with up to 15° of angulation relative to the planned prosthetic axis. The angled design redirects the prosthetic emergence to achieve a more favourable crown path of insertion, improving aesthetics and occlusal loading. Suitable for anterior and posterior single-unit restorations where implant angulation cannot be fully corrected by a straight abutment.
