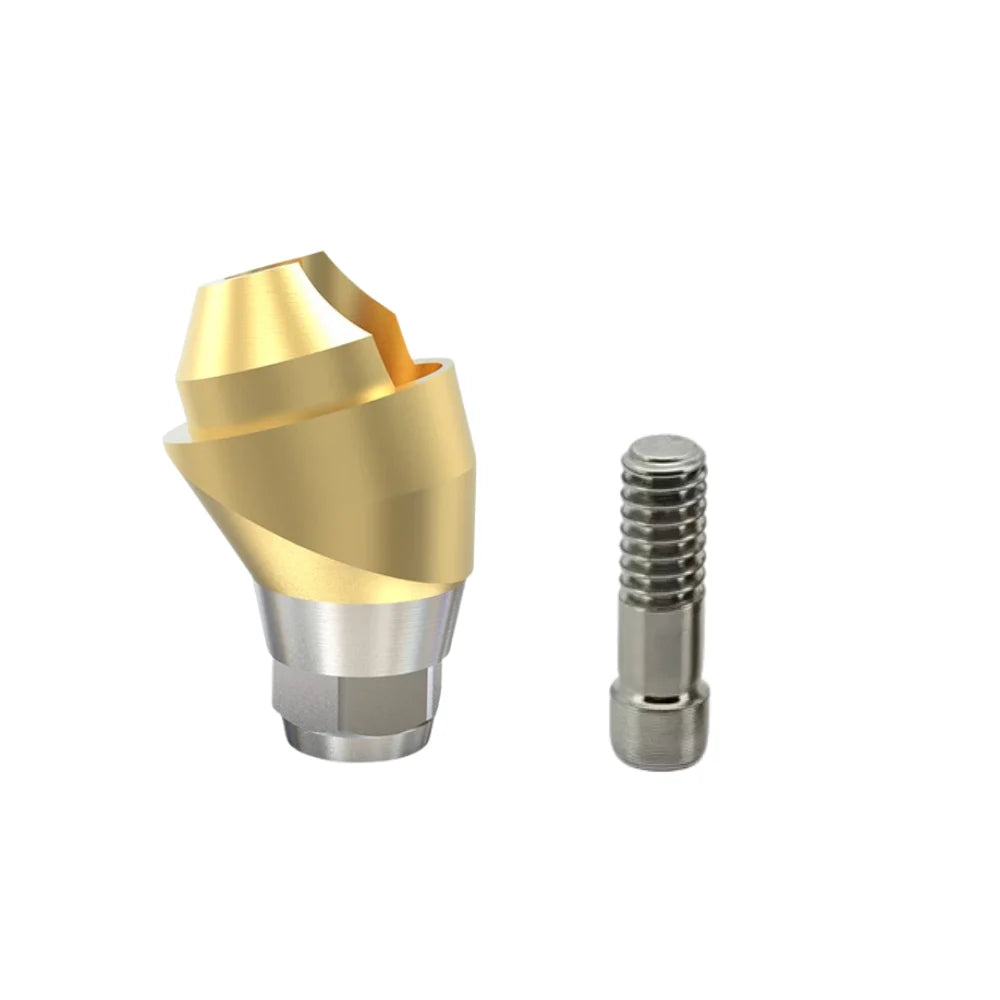

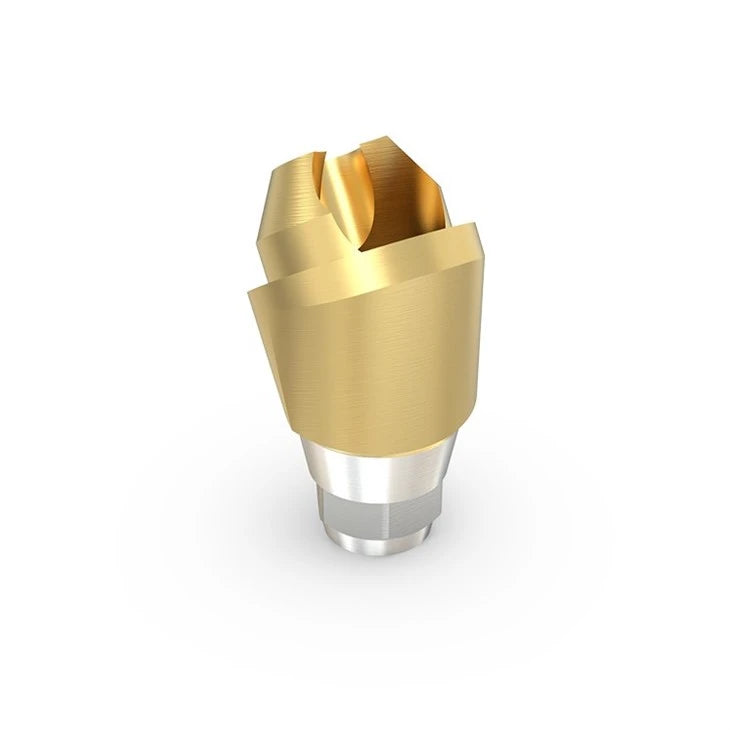

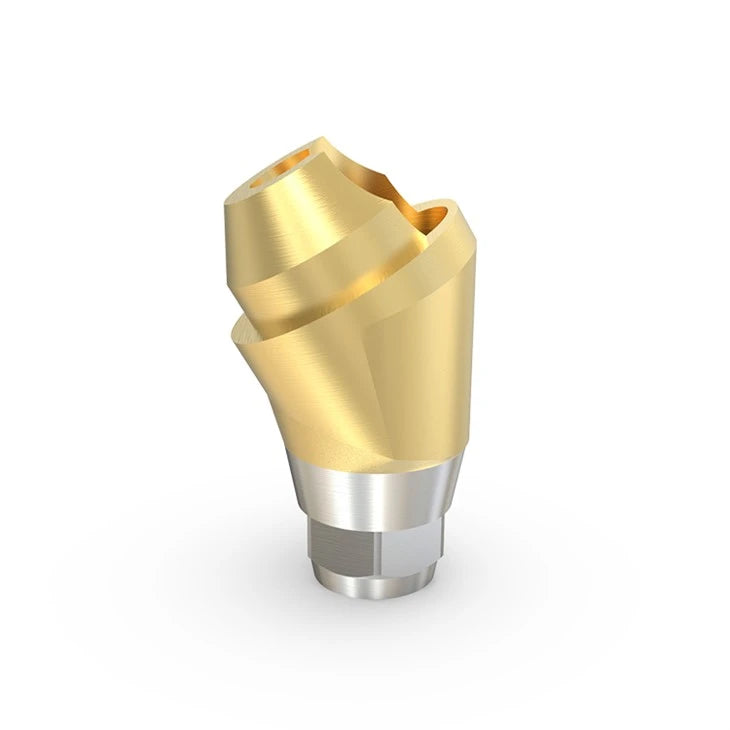

30° angulated TMA multi-unit abutment for ADIN implant systems, designed to correct significant implant divergence in full-arch and multi-unit screw-retained prosthetic cases, enabling a passively fitting restoration even where implants are placed at challenging angles.

Abutment Specifications:

• Angulation: 30°
• Platform Diameter: 4.9 mm
• Top Diameter: 3.4 mm
• Retention Height: 2.1 mm

Available Variants (Total Height / Gingival Height):

• 5.7 mm / 3 mm
• 6.05 mm / 4 mm

Compatible With:

• ADIN Touareg™ S
• ADIN Touareg™ OS
• ADIN Swell™

Indications:

Indicated for multi-unit prosthetic cases where implants are placed with up to 30° of divergence from the ideal prosthetic axis — commonly encountered in full-arch cases where distal implants are tilted to avoid anatomical structures such as the maxillary sinus or inferior alveolar nerve. The 30° angulated multi-unit abutment compensates for this divergence, allowing the prosthetic platform to be aligned for a passively fitting screw-retained bridge or full-arch restoration. Use with compatible ADIN TMA multi-unit prosthetic components.
