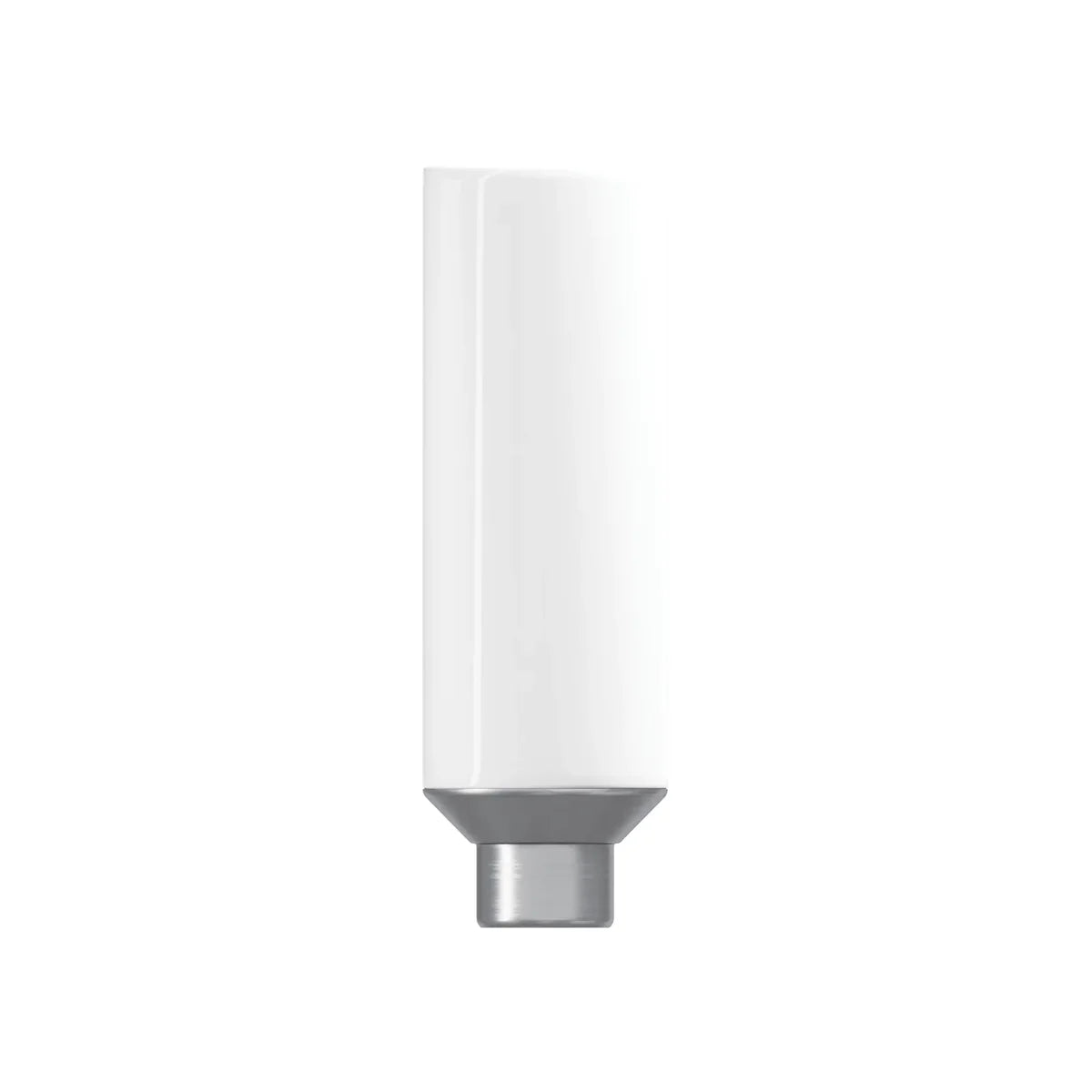

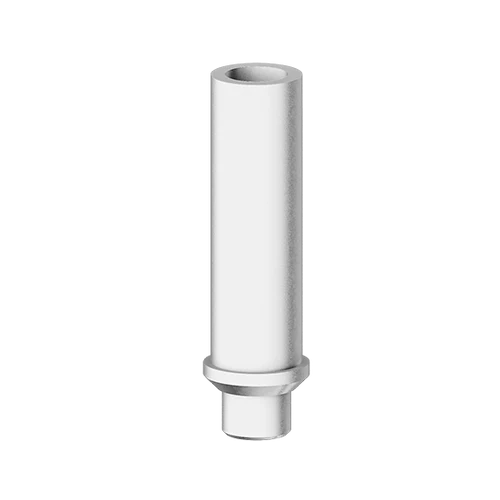

Free-rotation plastic cylinders for screw-retained restorations on MIS SEVEN and Lance Plus implant systems, available in direct plastic, gold plastic, CoCr, and wide profile variants across narrow, standard, and wide platforms.

Available Variants (Material / Platform):

• Direct Plastic Cylinder: Narrow 3.5 mm | Standard 3.75 mm | Wide 4.5 mm
• Direct Gold Plastic Cylinder: Narrow 4.3 mm | Standard 5 mm | Wide 5.5 mm
• Direct CoCr Plastic Cylinder: Narrow 4.3 mm | Standard 5 mm | Wide 5.5 mm
• Wide Profile Direct Plastic Cylinder: Standard 5 mm | Wide 6.5 mm

Function: Free-rotation cylinders connect to the implant without rotational indexing, allowing the lab to orient the screw access channel freely during wax-up and casting. Used as the implant-level foundation for cast metal, pressed ceramic, or milled frameworks in screw-retained prosthetic workflows.

Compatible With:

• MIS SEVEN Implant System
• MIS Lance Plus Implant System

Indications: Screw-retained single-unit and multi-unit restorations where free rotational positioning of the screw access channel is required. Select material and platform to match the implant platform and planned restoration type.
