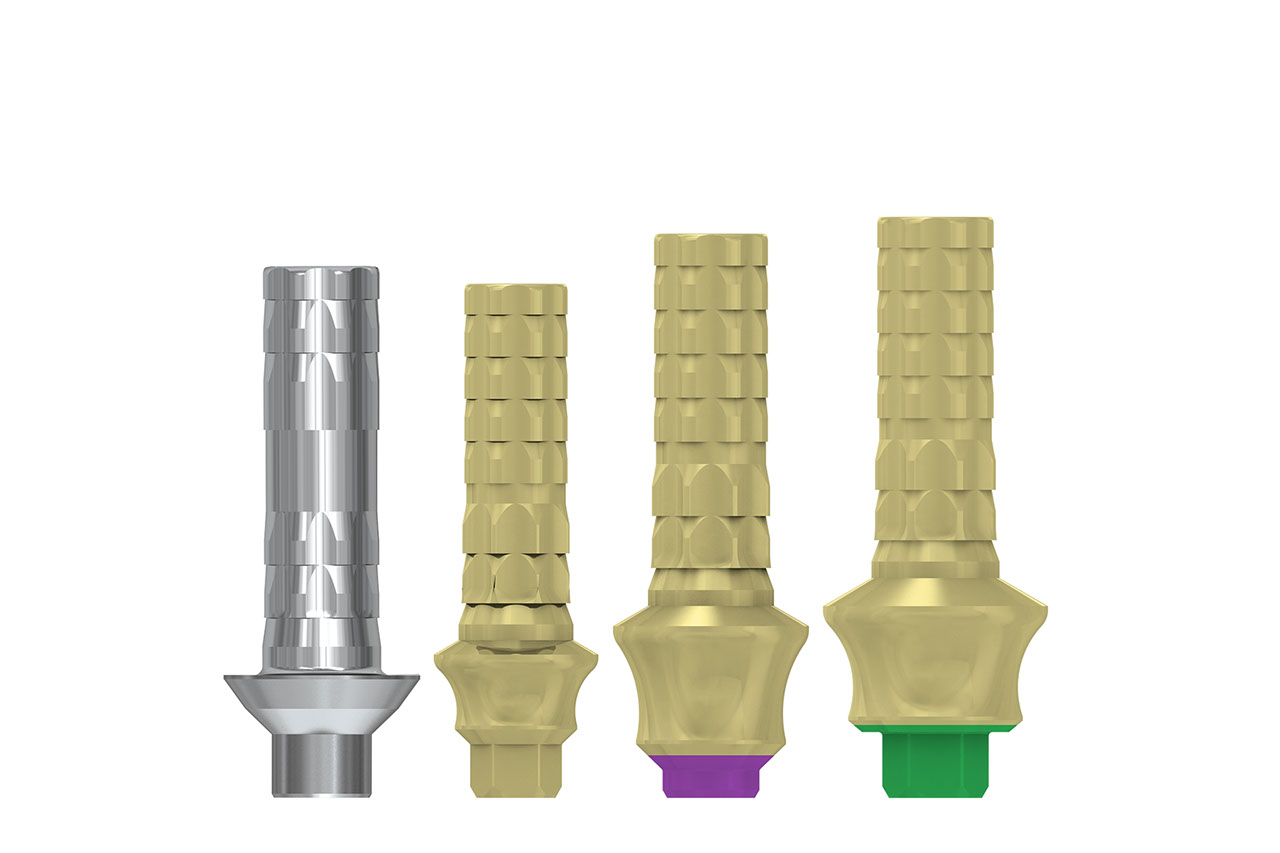

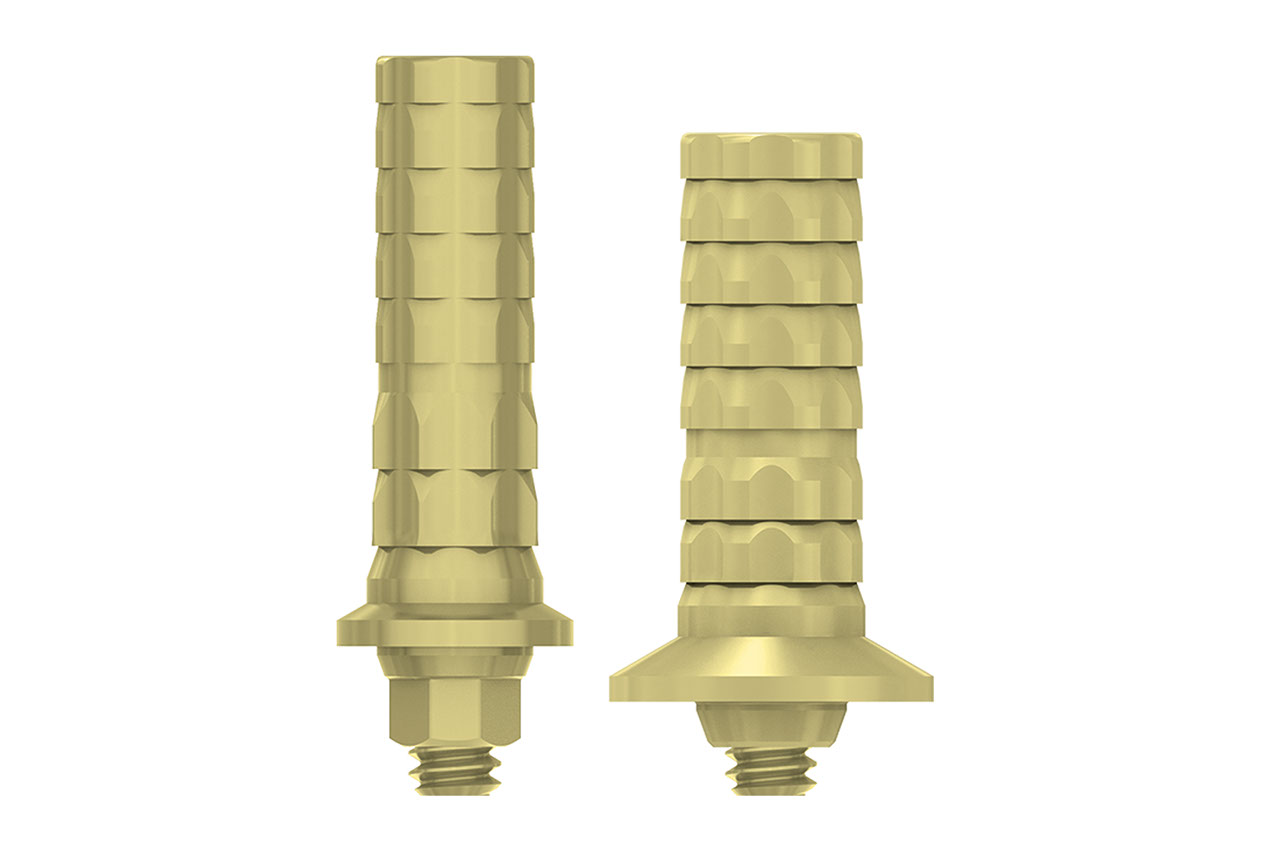

Free-rotation direct temporary cylinders for MIS SEVEN and Lance Plus implant systems, available in narrow (4 mm), standard (4.8 mm), and wide (5.5 mm) platforms with 1 mm, 2 mm, and 3 mm collar heights in standard and concave profile designs, for chairside fabrication of implant-level temporary restorations.

Available Variants (Profile / Collar Height / Platform):

• Direct Temporary Cylinder Free Rotation: 1 mm collar — Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm
• Direct Temporary Cylinder Free Rotation Concave Profile: 2 mm collar — Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm
• Direct Temporary Cylinder Free Rotation Concave: 3 mm collar — Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm

Function: Free-rotation temporary cylinders connect directly to the implant at the implant level and allow the temporary crown or bridge to rotate freely before the prosthetic screw is tightened. This simplifies chairside pick-up and adjustment of the temporary restoration. The concave profile variants provide a more anatomical emergence profile for improved soft tissue conditioning during the healing phase.

Compatible With:

• MIS SEVEN Implant System
• MIS Lance Plus Implant System

Indications: Chairside fabrication of implant-level temporary restorations during the prosthetic phase. Select platform to match the implant platform, collar height to match tissue depth, and profile based on emergence profile requirements.
