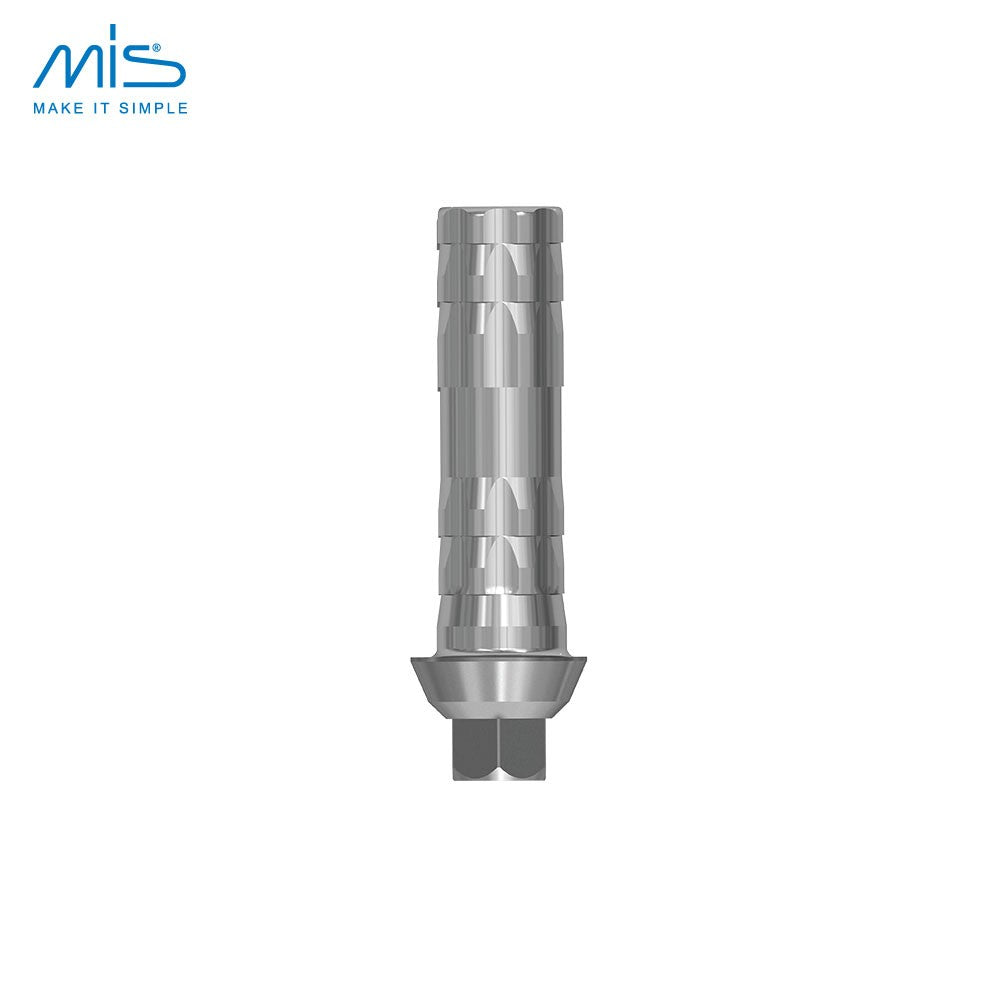

Anti-rotation temporary cylinders for screw-retained temporary restorations on MIS SEVEN and Lance Plus implant systems, available in standard and concave collar profiles across narrow, standard, and wide platforms with collar heights of 1 mm, 2 mm, and 3 mm.

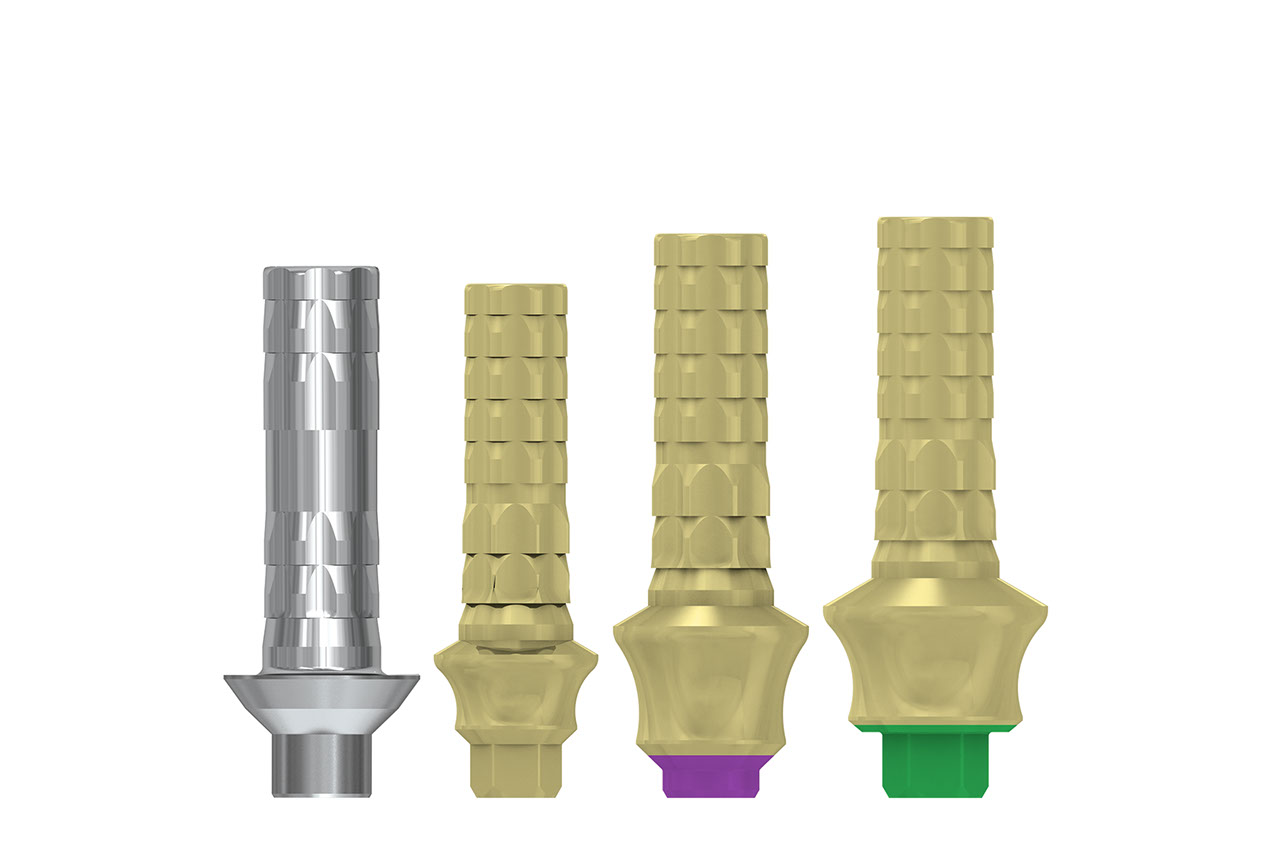

Available Variants (Profile / Collar Height / Platform):

• Anti-Rotation, Collar Height 1 mm: Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm
• Anti-Rotation Concave, Collar Height 2 mm: Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm

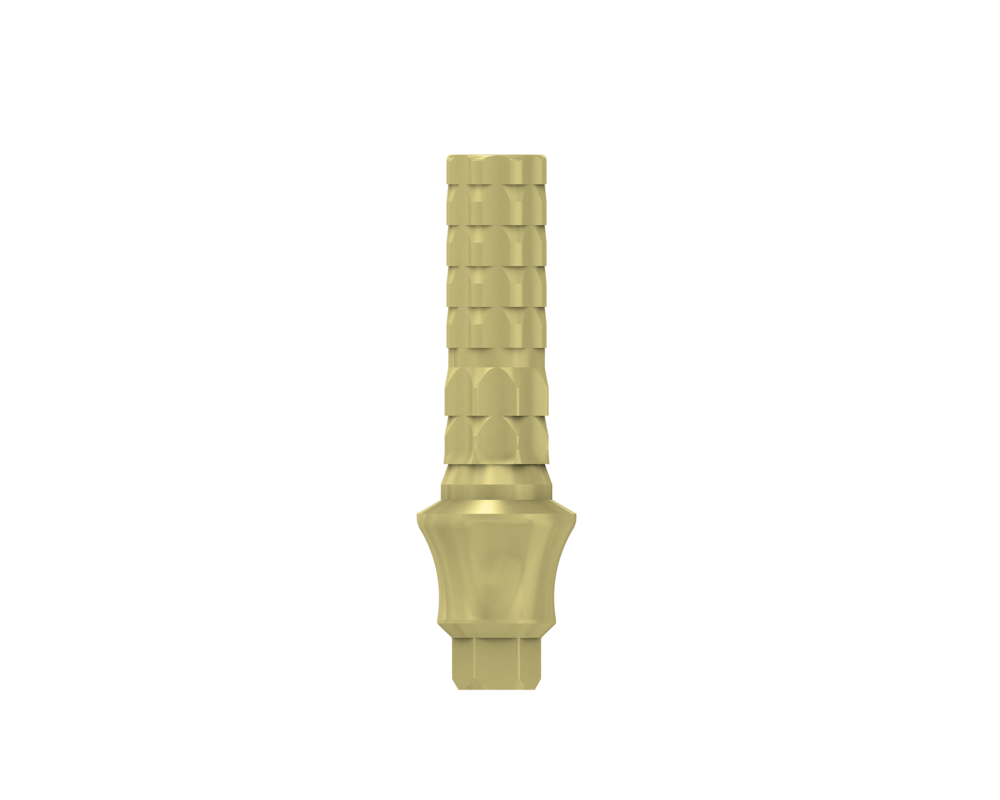

• Anti-Rotation Concave, Collar Height 3 mm: Narrow 4 mm | Standard 4.8 mm | Wide 5.5 mm

Function: Anti-rotation temporary cylinders connect to the implant with rotational indexing, preventing the temporary crown from rotating under occlusal load during the provisional phase. The collar height options accommodate varying tissue depths, and the concave profile variants support wider emergence profiles for aesthetic temporisation.

Compatible With:

• MIS SEVEN Implant System
• MIS Lance Plus Implant System

Indications: Screw-retained temporary restorations during the healing and soft tissue conditioning phase. Select collar height to match tissue depth and platform to match the implant platform diameter.
