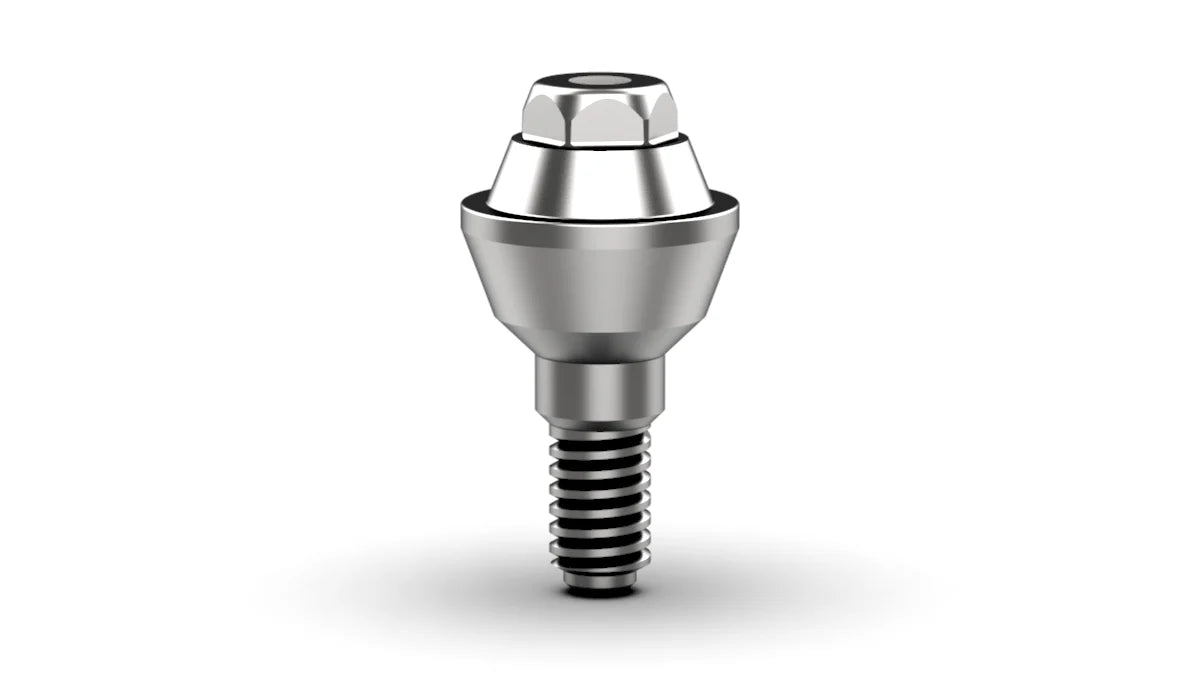

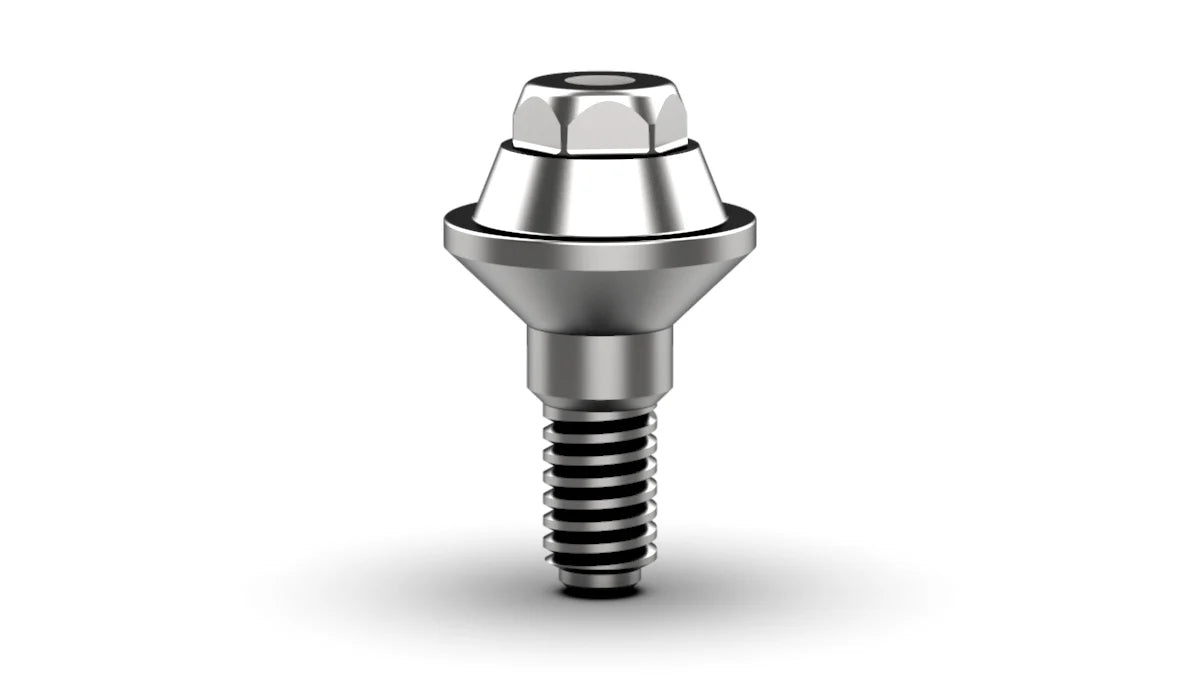

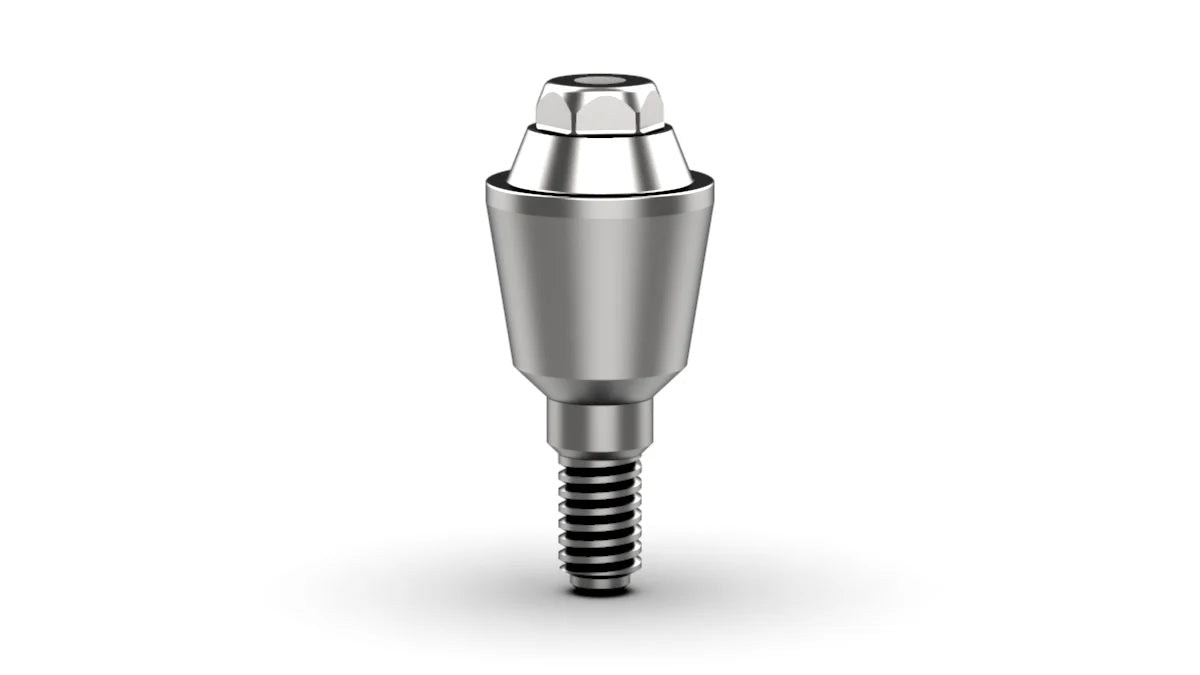

Straight TMA multi-unit abutment for ADIN implant systems, designed for screw-retained implant-supported bridges and full-arch restorations where the implant axis is within acceptable range and no angulation correction is required.

Abutment Specifications:

• Platform Diameter: 4.9 mm
• Top Diameter: 3.4 mm
• Retention Height: 2.1 mm

Available Variants (Gingival Height / Total Height):

• 3.7 mm / 3.1 mm — Option 1
• 4.7 mm / 4.1 mm — Option 2
• 5.7 mm / 5.1 mm — Option 3
• 6.7 mm / 6.1 mm — Option 4
• 7.7 mm / 7.1 mm — Option 5

Compatible With:

• ADIN Touareg™ S
• ADIN Touareg™ OS
• ADIN Swell™

Indications:

Indicated for multi-unit prosthetic workflows where a passive-fit, screw-retained bridge or full-arch restoration is planned. The straight multi-unit abutment connects to the implant and provides a standardised prosthetic platform at gingival level, allowing the bridge superstructure to be fabricated and delivered with a single screw-access channel per unit. Select the gingival height based on tissue depth to ensure the abutment collar is fully subgingival and the retention interface is accessible for the prosthetic components.
