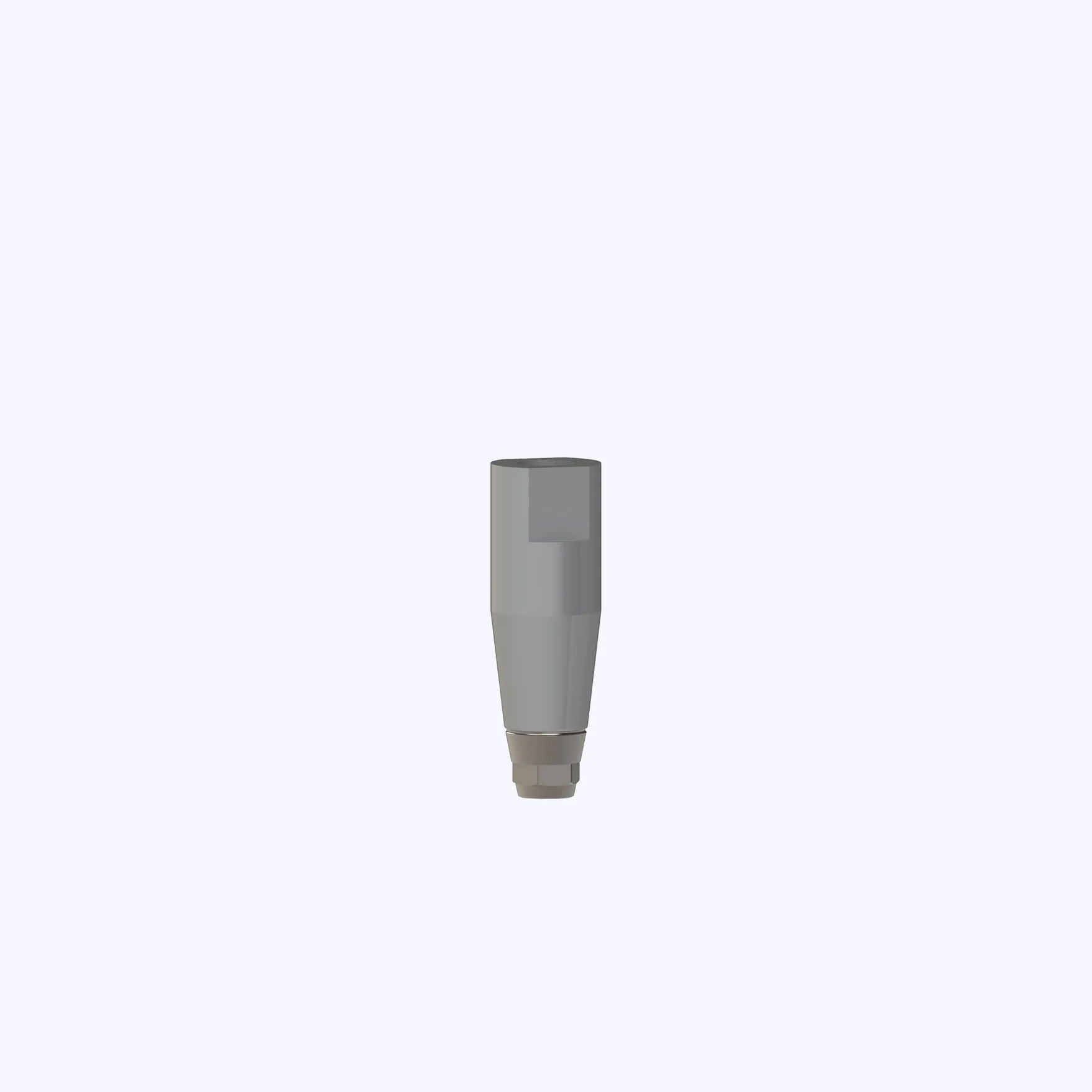

Scan body for the Dentium Super Line implant system, used during digital impression workflows to capture the precise position, depth, and angulation of the Super Line implant for CAD/CAM abutment and restoration design.

Available Variants (Implant Diameter / Collar Height / Scan Body Height / Connection):

• 4 mm / 2.5 mm / 6 mm Hex  |  4 mm / 2.5 mm / 6 mm Non-Hex
• 4 mm / 3 mm / 8 mm Hex  |  4 mm / 3 mm / 8 mm Non-Hex
• 4 mm / 3.5 mm / 10 mm Hex  |  4 mm / 3.5 mm / 10 mm Non-Hex
• 5 mm / 2.5 mm / 6 mm Hex  |  5 mm / 2.5 mm / 6 mm Non-Hex
• 5 mm / 3 mm / 8 mm Hex  |  5 mm / 3 mm / 8 mm Non-Hex
• 5 mm / 3.5 mm / 10 mm Hex  |  5 mm / 3.5 mm / 10 mm Non-Hex
• 6 mm / 2.5 mm / 6 mm Hex  |  6 mm / 2.5 mm / 6 mm Non-Hex
• 6 mm / 3 mm / 8 mm Hex  |  6 mm / 3 mm / 8 mm Non-Hex
• 6 mm / 3.5 mm / 10 mm Hex  |  6 mm / 3.5 mm / 10 mm Non-Hex

Function:

The Super Line scan body is placed on the implant prior to intraoral scanning. Its precisely defined geometry is recognised by compatible CAD/CAM software, allowing the software to calculate the exact implant position, depth, and orientation in three dimensions. This data is used to design and mill a custom abutment and crown or bridge framework with accurate fit and emergence profile. The hex and non-hex variants correspond to the internal connection type of the Super Line implant, and the collar height and scan body height options allow selection based on tissue depth and available scanning clearance.

Compatible With:

• Dentium Super Line Implant System (Standard connection — Hex and Non-Hex)
• Compatible CAD/CAM design software with Dentium Super Line library

Indications:

Indicated for digital impression workflows for Super Line implant-supported restorations. Select the implant diameter to match the Super Line platform, the collar height to match tissue depth, and the scan body height based on available interarch clearance. Confirm hex or non-hex connection type before ordering.
