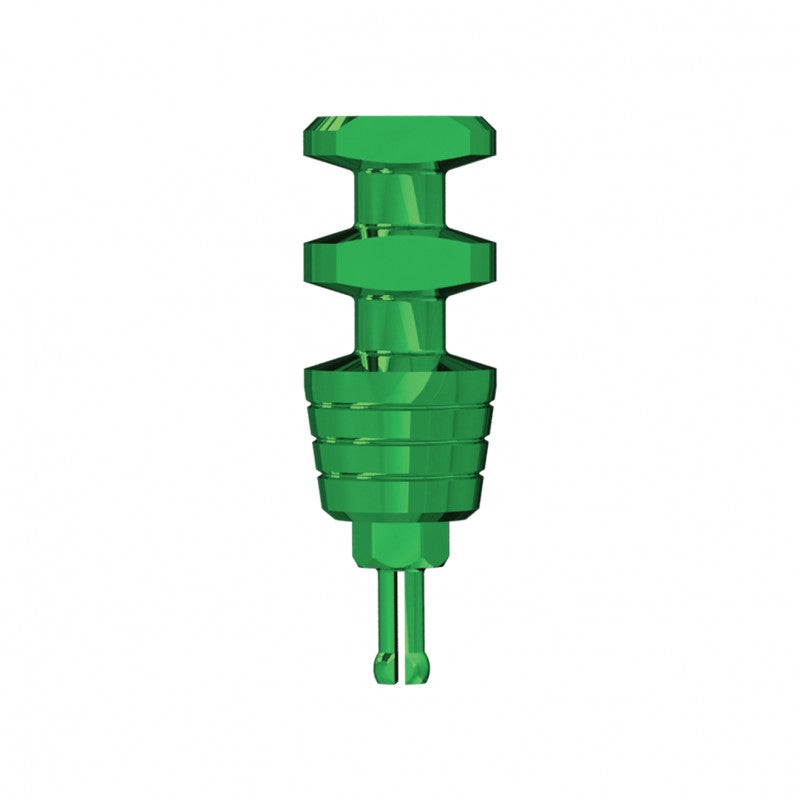

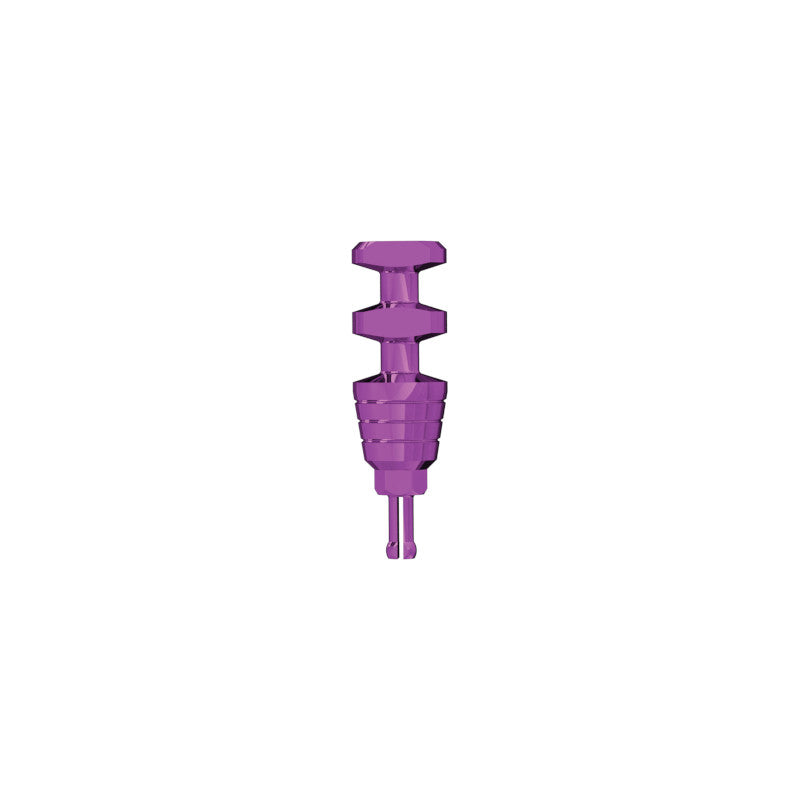

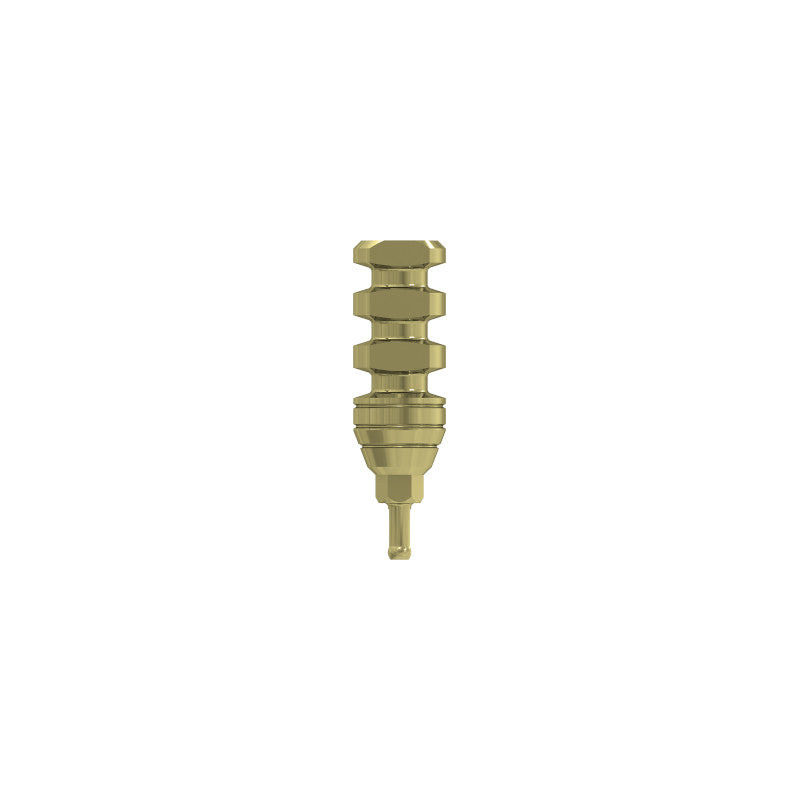

Closed-tray (indirect / press-fit) impression copings for MIS SEVEN and Lance Plus implant systems, available in narrow (4.5 mm), standard (5 mm), and wide (5.5 mm) platform sizes, for conventional implant-level impressions using a closed impression tray.

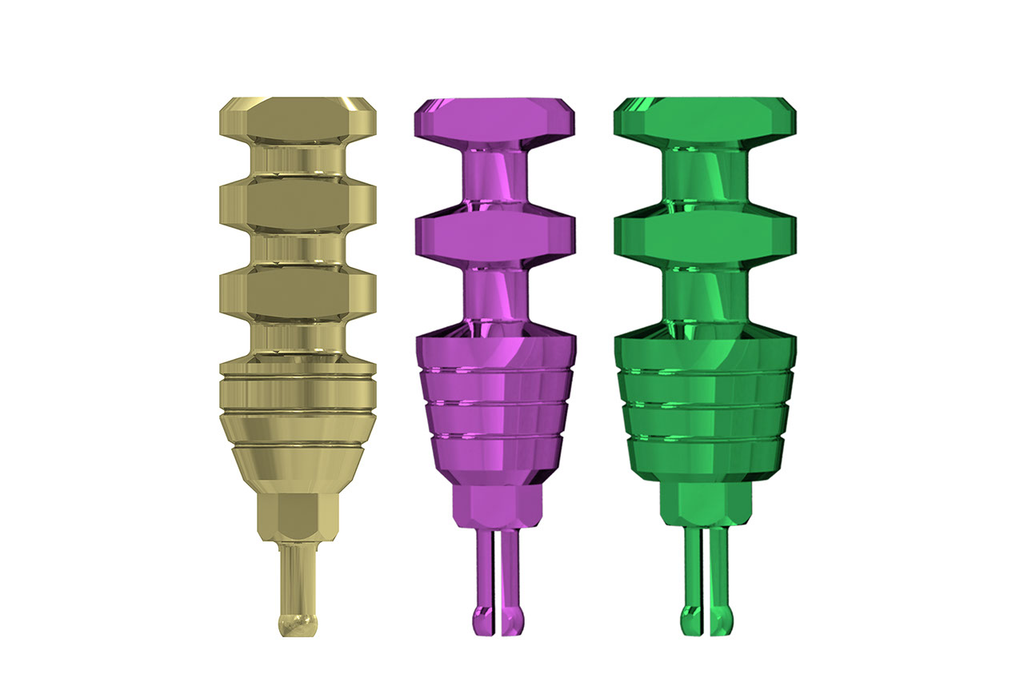

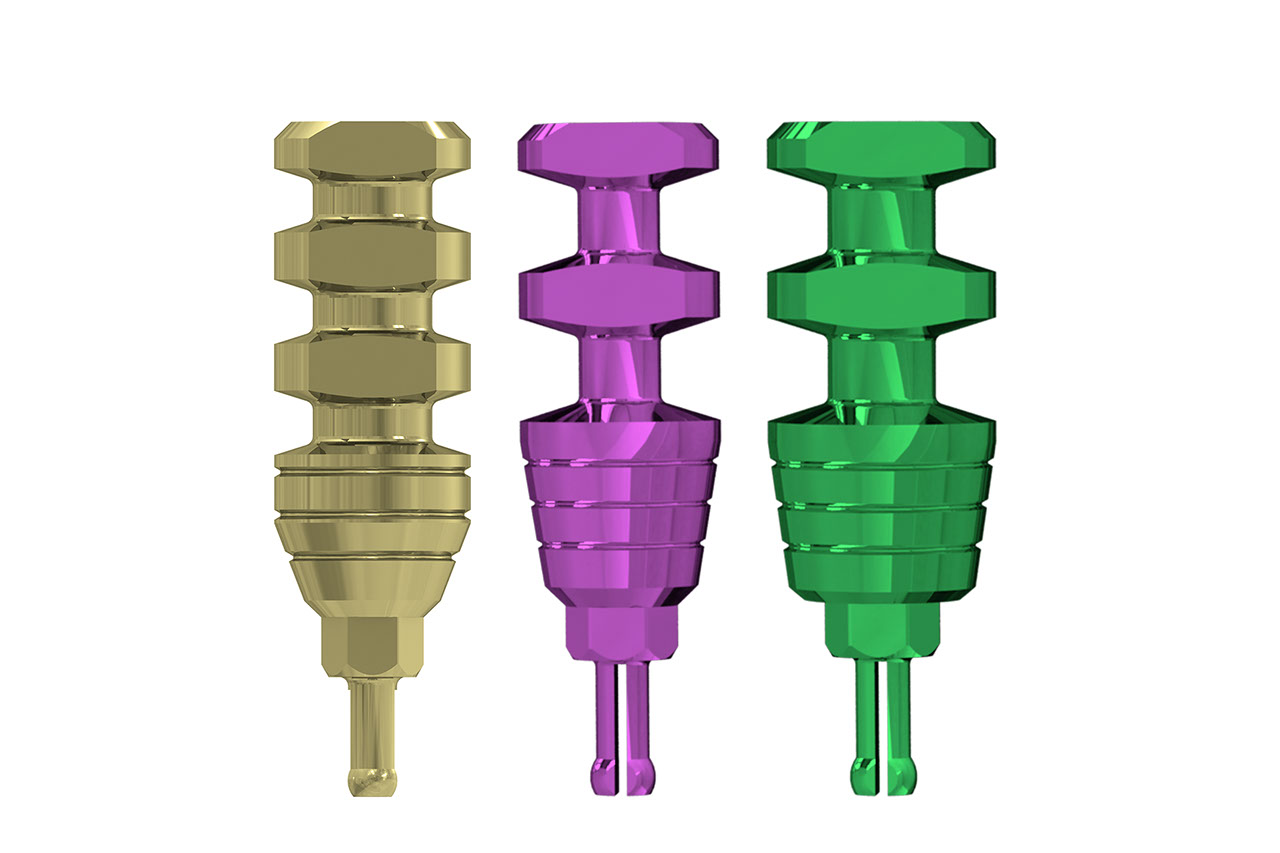

Available Variants (Platform):

• Narrow 4.5 mm
• Standard 5 mm
• Wide 5.5 mm

Function: Closed-tray impression copings are placed onto the implant and remain in the mouth when the impression tray is removed. The coping transfers the implant position to the impression material via a snap-fit or press-fit engagement. After the impression is removed, the coping is unscrewed from the implant and placed back into the impression, where the lab analog is then attached for model pouring. This technique is preferred when access is limited or when using stock trays.

Compatible With:

• MIS SEVEN Implant System
• MIS Lance Plus Implant System
• MIS lab analogs (3.3 mm, 3.75 mm, 4.6 mm)

Indications: Conventional implant-level impressions using closed-tray technique. Select platform to match the implant platform.
