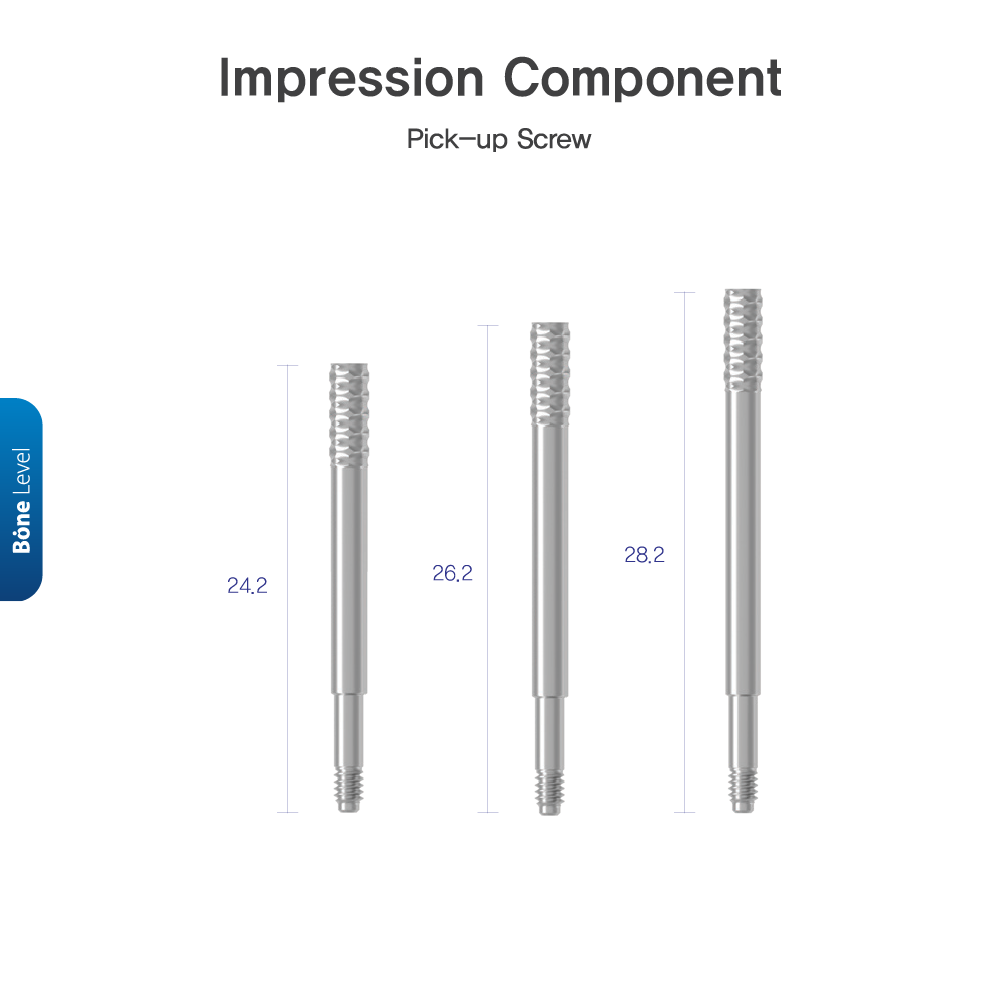

Bone level hex pick-up impression component for the Dentium implant system, used to capture the exact three-dimensional position and rotational orientation of the bone level implant using an open-tray (pick-up) impression technique.

Function:

The hex pick-up impression component connects directly to the bone level implant via a hex anti-rotational interface, ensuring the implant’s rotational position is accurately transferred to the working model. The component remains embedded in the impression material when the open tray is removed, and the lab analog is attached before model pouring. The hex connection is essential for single-unit restorations where rotational accuracy is critical for abutment seating.

Available Variants (Platform / Length):

• 3.8 mm / Middle
• 3.8 mm / Long
• 5 mm / Short
• 5 mm / Long

Compatible With:

• Dentium Bone Level Implant System

Indications:

Indicated for open-tray impression workflows where rotational accuracy is required, particularly for single-unit restorations. Select the platform size to match the implant diameter and the length based on tissue depth and access. Ensure the component is fully seated and the retaining screw is tightened before taking the impression. Loosen the screw through the tray access hole before removing the tray.
