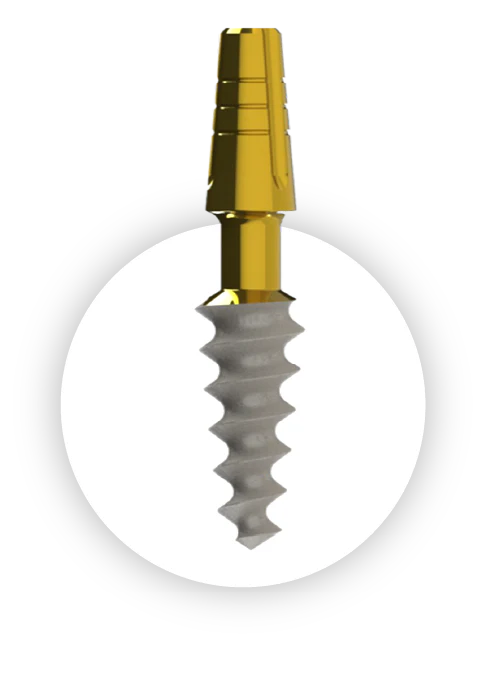

Compressive Implant | C-Series | I-Fix | One Piece Implant

The I-Fix C-Series Compressive implant features a self-compressing thread design that condenses bone laterally during insertion, increasing bone density around the implant and enhancing primary stability in soft or low-density bone. Ideal for maxillary posterior sites and post-extraction sockets where bone quality is compromised.

Indications

• Soft bone (Type III/IV) requiring bone condensation during placement
• Post-extraction sockets with wide dimensions
• Cases where bone compression is preferred over bone removal
• Immediate loading in compromised bone quality
• Maxillary posterior sites with low bone density

Available Diameters & Lengths

• 3.5 mm — 8, 10, 12, 14, 16, 18, 20 mm
• 4.0 mm — 8, 10, 12, 14, 16, 18, 20 mm
• 4.5 mm — 8, 10, 12, 14, 16 mm
• 5.0 mm — 8, 10, 12, 14 mm
• 5.5 mm — 8, 10 mm

Specifications

• Connection: Internal Hex
• Design: Compressive thread (bone condensing, not bone cutting)
• Surface: SLA (Sandblasted, Large-grit, Acid-etched)
• Material: Grade 4 Titanium

Clinical Notes

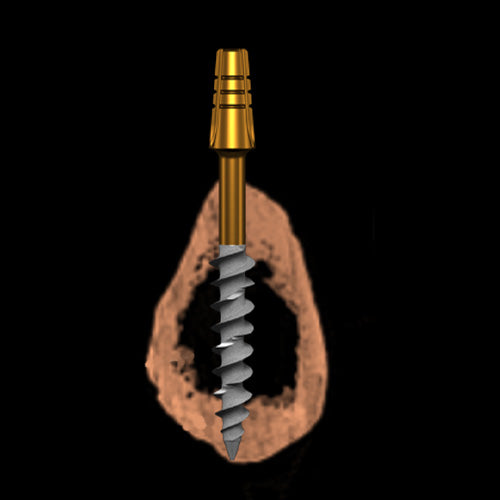

• Compressive thread condenses bone laterally — increases bone density and primary stability without bone removal
• Do not use in dense cortical bone — risk of excessive compression and bone necrosis
• Ideal for maxillary posterior sites with soft bone (Type III/IV)
• Undersized drilling recommended to maximise compressive effect

Compatible With

• I-Fix C-Series compatible prosthetic components

Supplied As

• Sterile, individually packaged
• Implant mount included
