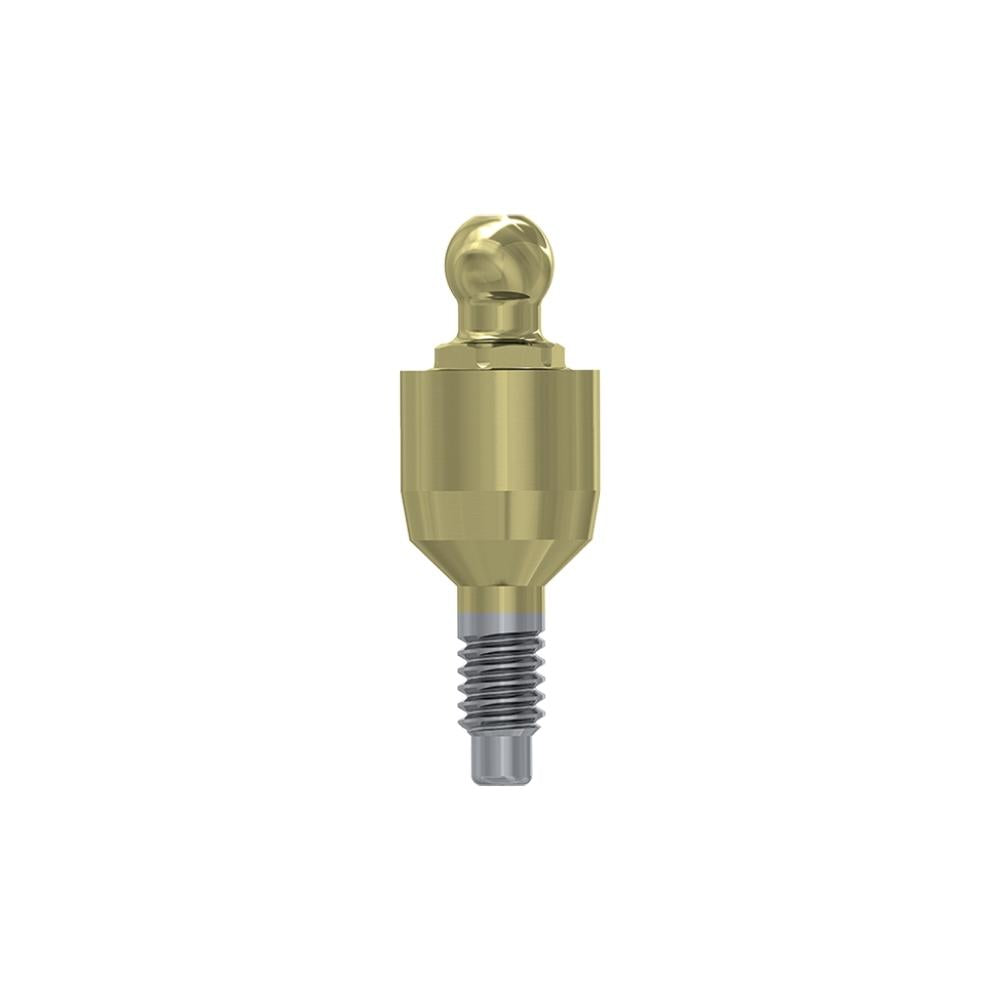

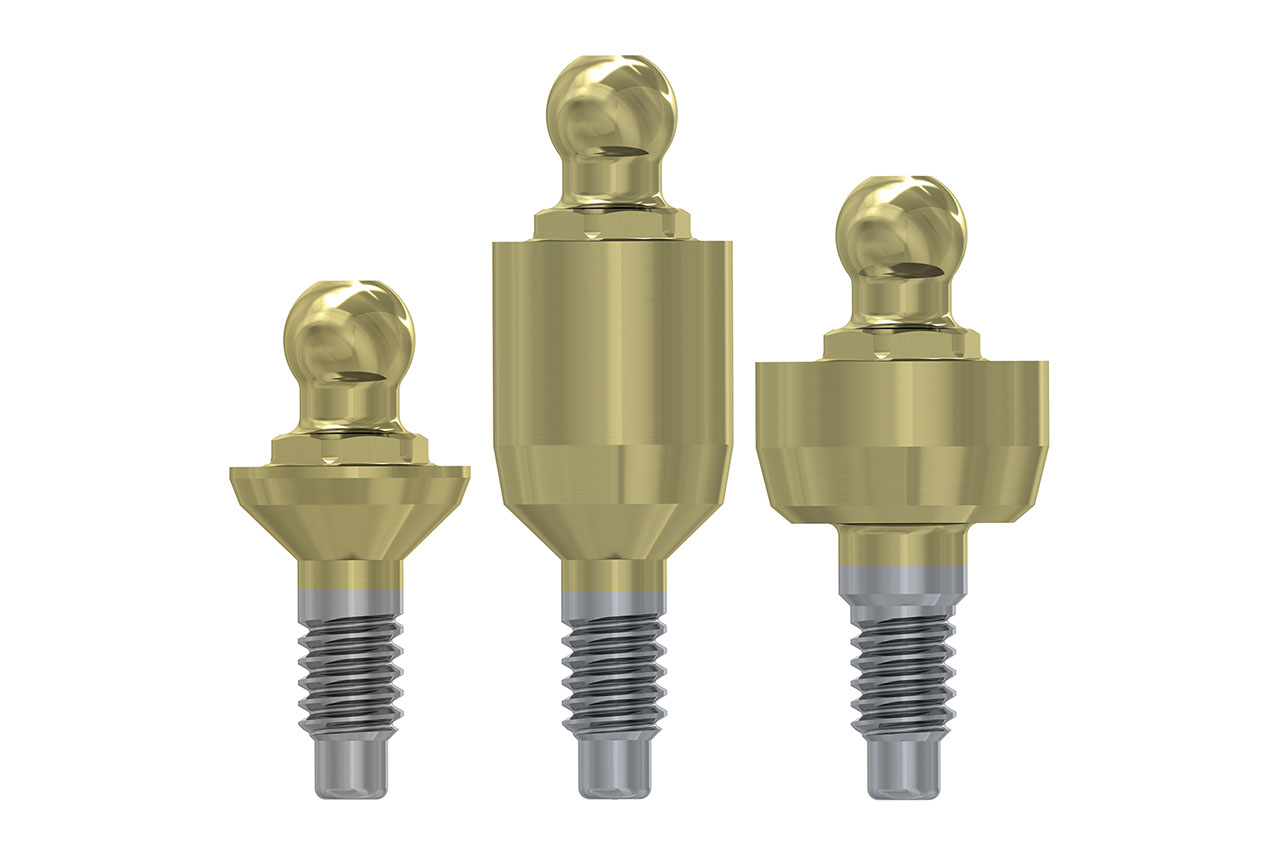

Ball attachment system for implant-supported overdentures on MIS SEVEN and Lance Plus implant systems, available in narrow, standard, and wide platforms with collar heights of 1–5 mm and angulations of 0°, 15°, and 25° for straight and angulated implant positions.

Available Variants (Platform / Collar Height / Angulation):

• Narrow 4 mm: 2 mm / 0° | 3 mm / 0° | 4 mm / 0°

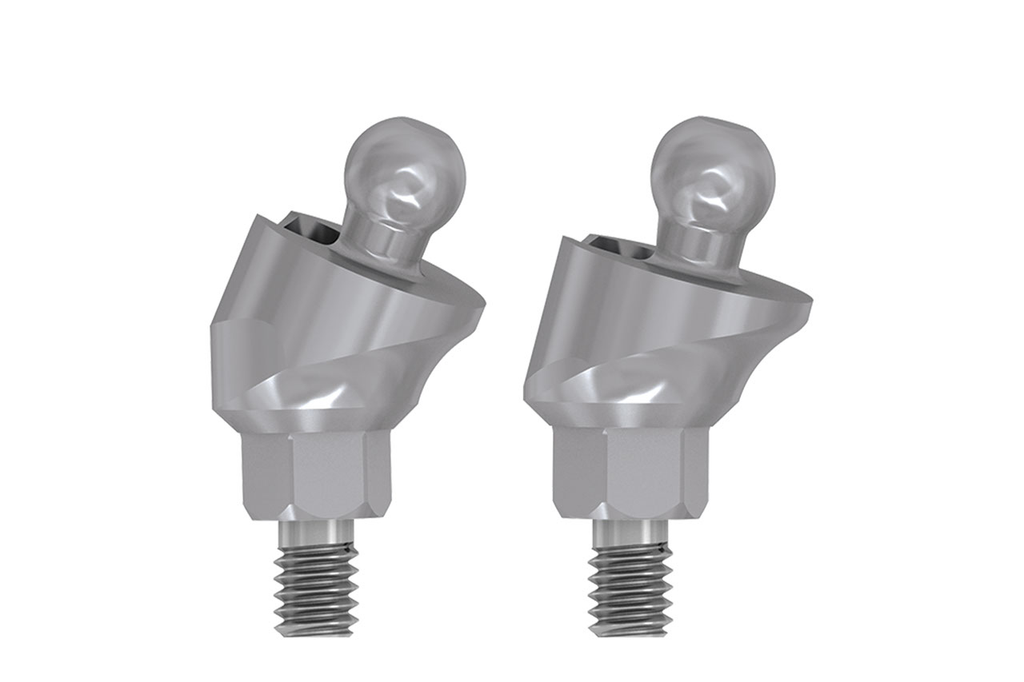

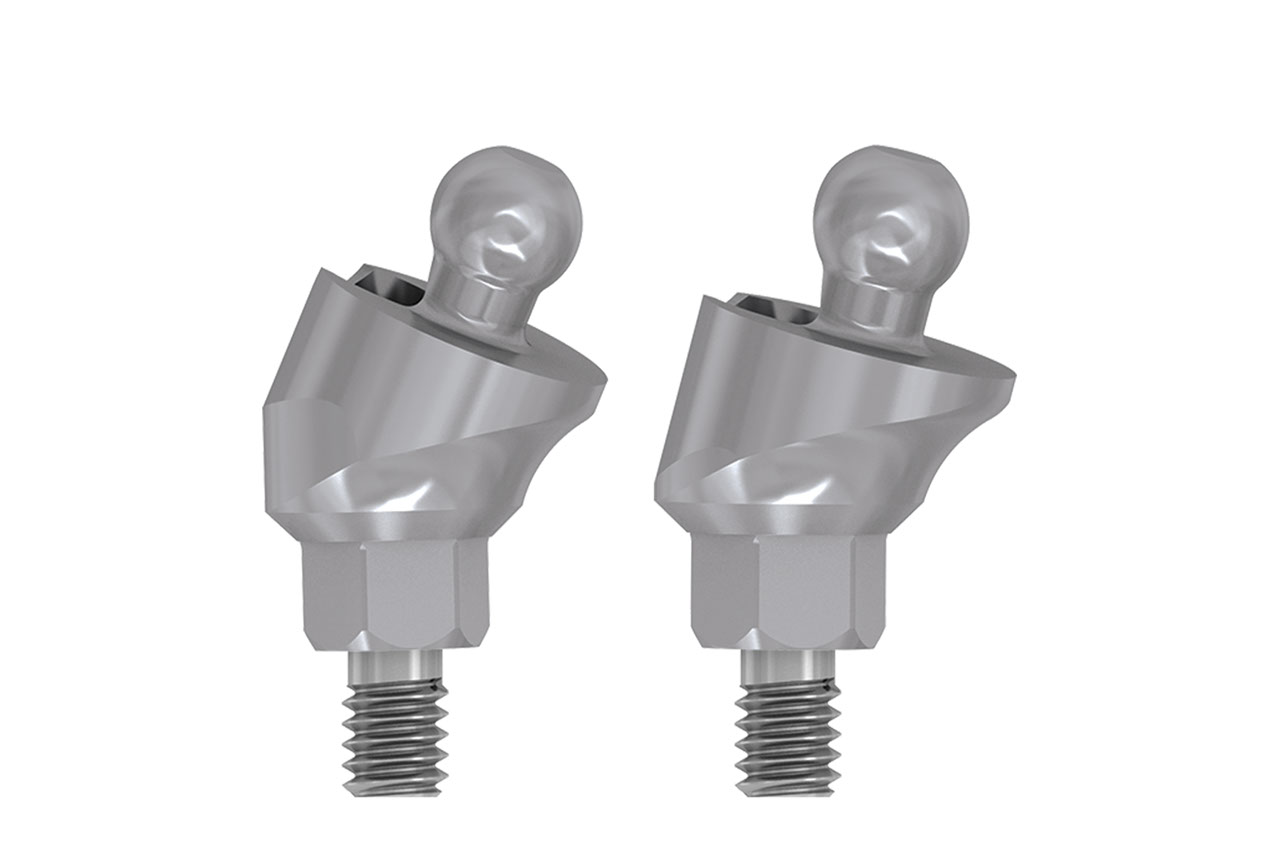

• Standard 4 mm: 1 mm / 0° | 2 mm / 0° | 3 mm / 0° | 4 mm / 0° | 5 mm / 0° | 3 mm / 15° | 3.5 mm / 25°
• Wide 5 mm: 1 mm / 0° | 3 mm / 0° | 5 mm / 0°

Function: Ball attachments screw directly into the implant and provide a spherical retention element that engages a corresponding housing in the overdenture, allowing the patient to snap the denture on and off while maintaining stable retention. Angulated variants (15° and 25°) compensate for divergent implant axes without requiring surgical correction.

Compatible With:

• MIS SEVEN Implant System
• MIS Lance Plus Implant System
• Standard ball attachment housings and caps

Indications: Implant-retained overdentures in fully edentulous arches. Select platform, collar height, and angulation based on implant platform, tissue depth, and implant divergence.
