TMA scan body for ADIN implant systems, used with intraoral scanners or desktop scanners to digitally capture the three-dimensional position and orientation of the implant for fully digital prosthetic workflows.

Available Variants:

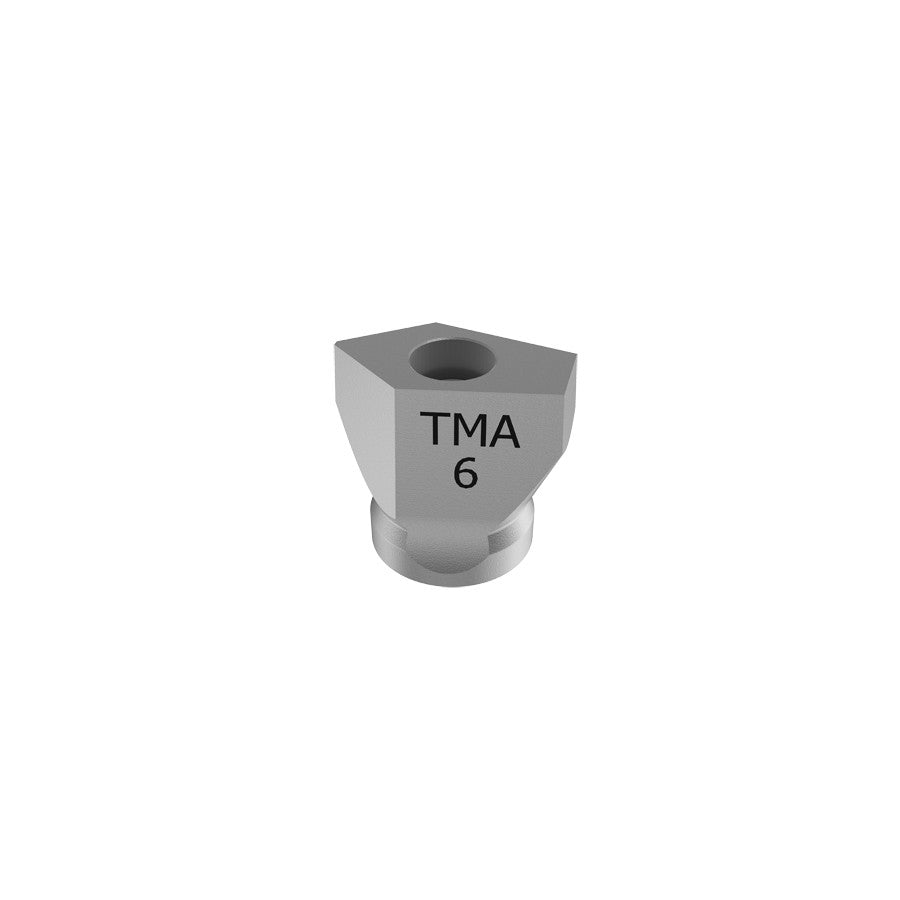

• Short — 6 mm height, for cases with limited interocclusal space or shallow tissue depth

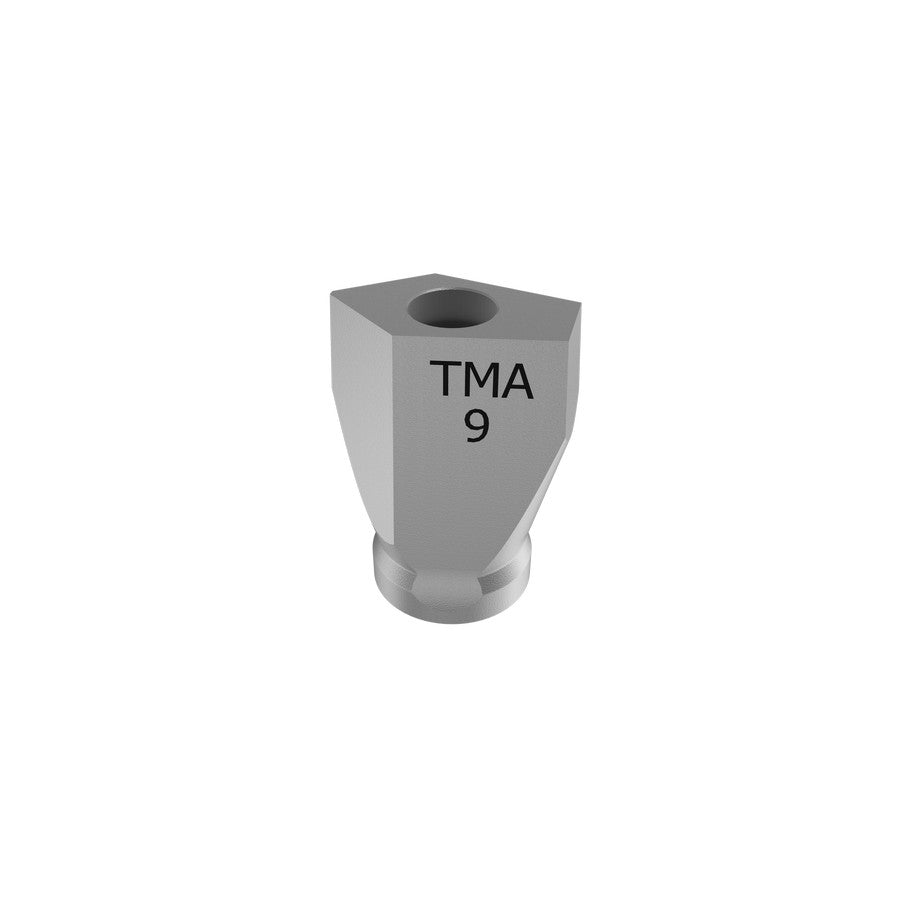

• Long — 9 mm height, for standard and deeper tissue cases requiring greater scan body emergence

Compatible With:

• ADIN TMA Connection
• ADIN Touareg™ S
• ADIN Touareg™ OS
• ADIN Swell™

Indications:

Indicated for digital implant-level scanning in fully digital prosthetic workflows. The scan body is placed on the implant and scanned intraorally or on a model using a compatible scanner. The resulting digital file is used in CAD/CAM software to design and mill or print custom abutments, crowns, and frameworks. The short variant is selected when vertical space is limited; the long variant provides better scanner visibility and accuracy in standard cases. Ensure the corresponding ADIN scan body library file is loaded in your CAD software before scanning.
