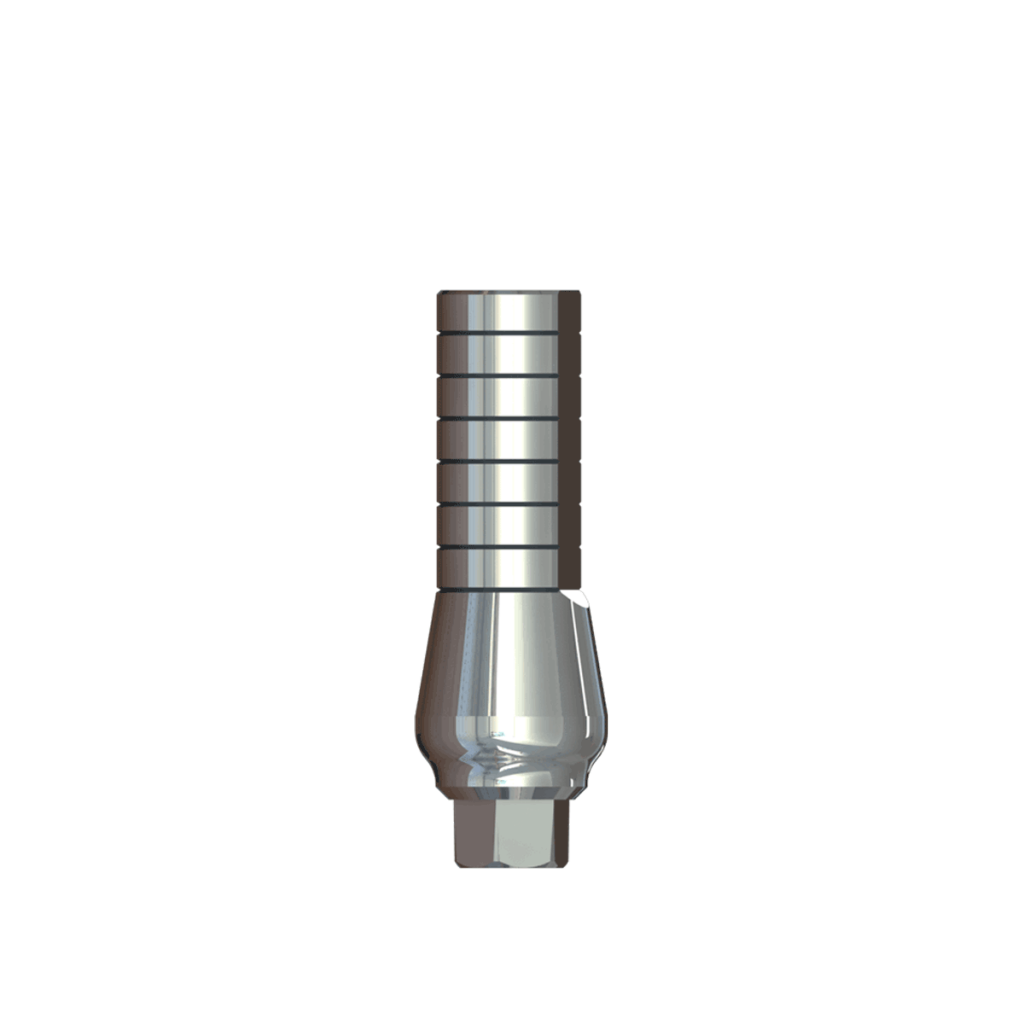

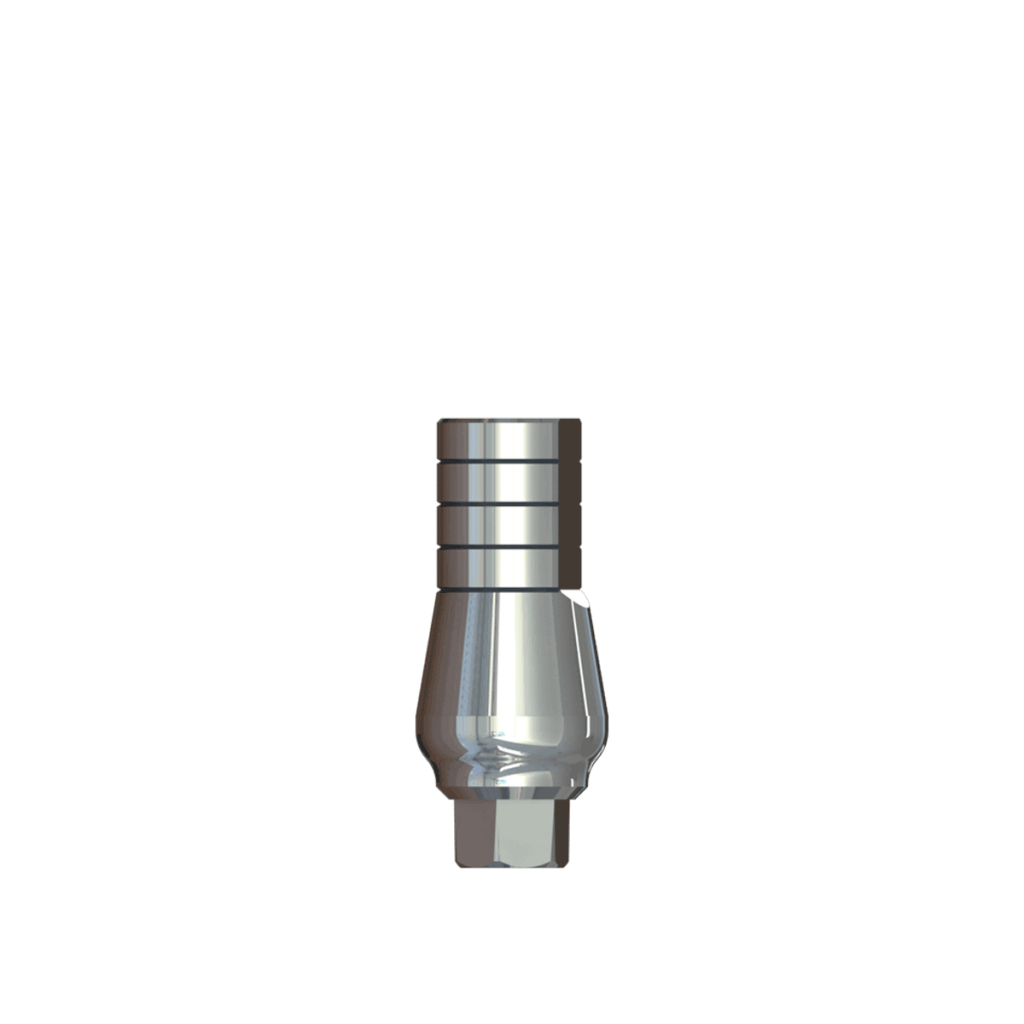

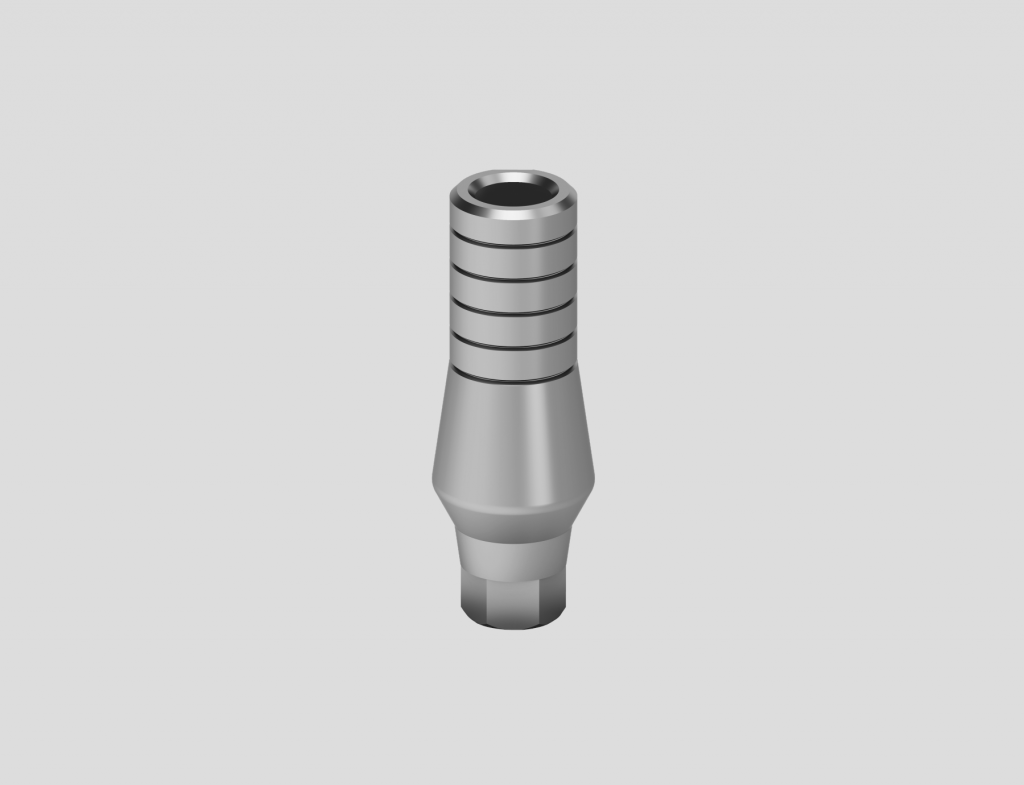

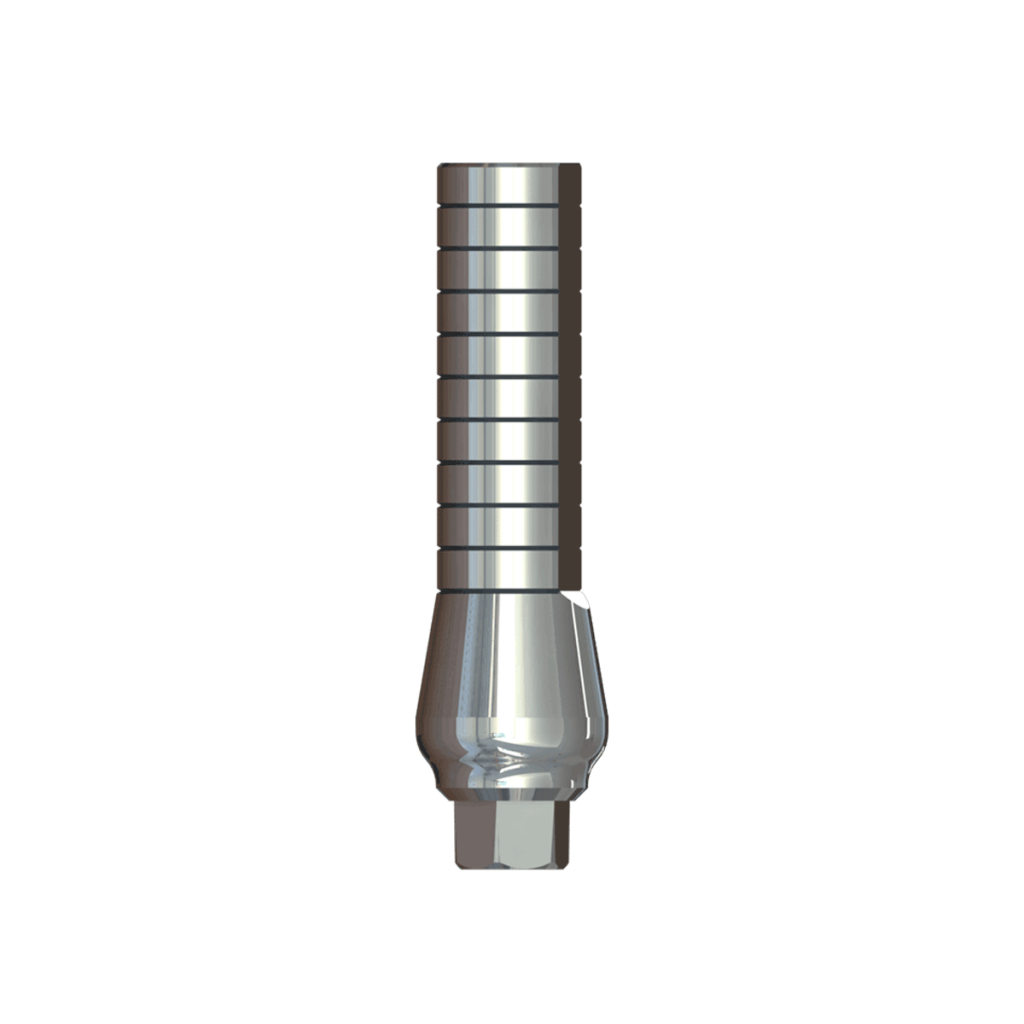

Straight titanium abutment for ADIN implant systems, providing a pre-machined, screw-retained abutment for cement-retained or screw-retained single-unit implant-supported crowns with a straight emergence profile.,

Available Variants (Total Height / Restoration Height / Gingival Height):

• 10.3 mm / 8.7 mm / 1 mm
• 11.3 mm / 9.7 mm / 2 mm
• 12.3 mm / 10.7 mm / 3 mm
• 13.3 mm / 11.7 mm / 4 mm
• 14.3 mm / 12.7 mm / 5 mm

Compatible With:

• ADIN Touareg™ S
• ADIN Touareg™ OS
• ADIN Swell™

Indications:

Indicated for single-unit implant-supported restorations where a straight abutment profile is appropriate and the implant axis is aligned with the planned crown axis. The titanium construction provides excellent biocompatibility and strength. Select gingival height based on soft tissue thickness to position the abutment margin correctly at or just below the gingival margin. The restoration height determines the available space for crown fabrication; select the appropriate height based on the available interocclusal space.
